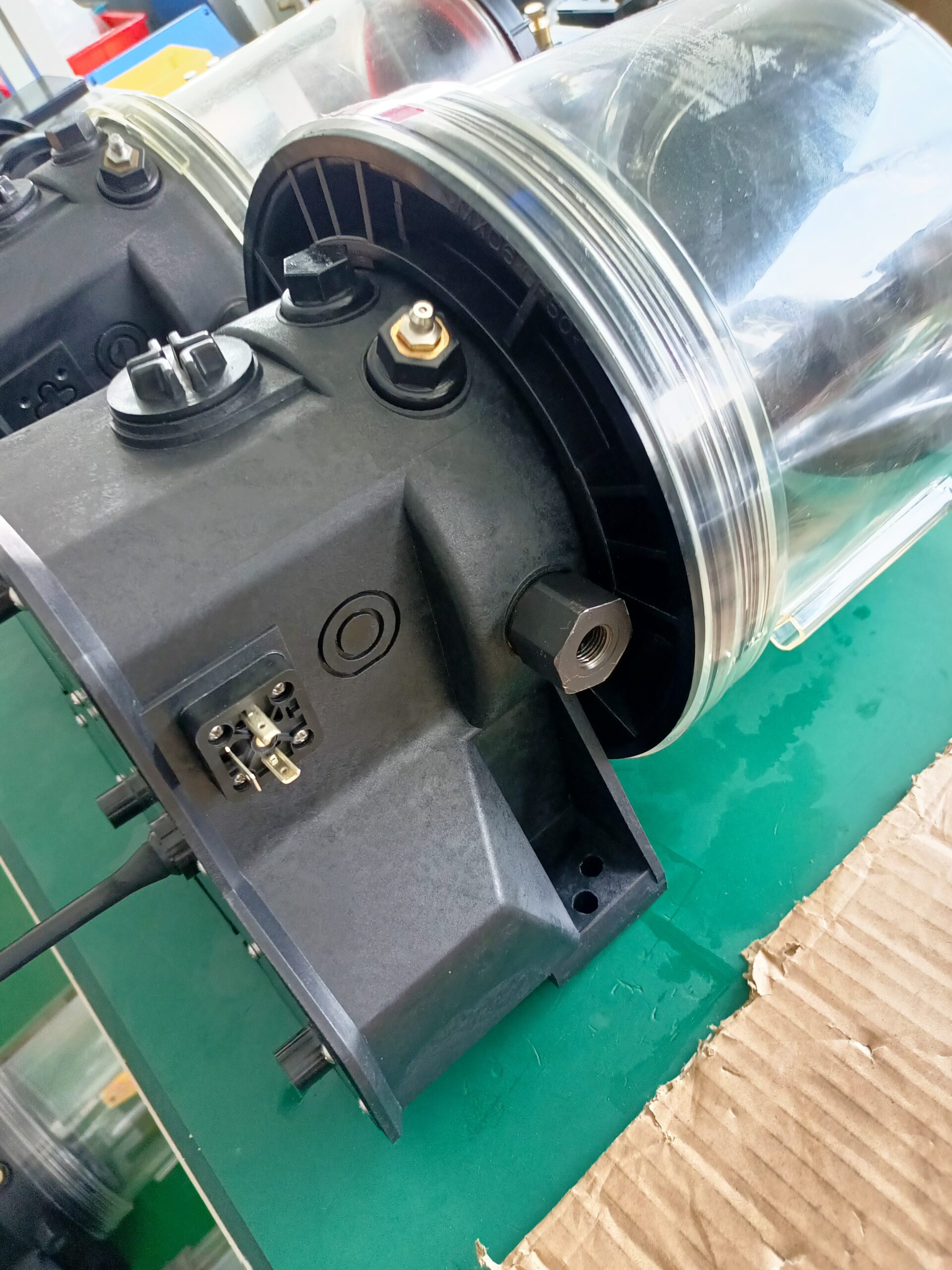

P300-4L Electrically Operated Lubrication Pump
Optional control printed circuit board with different operating settings
Range of reservoir types provided
DC or AC applications
Various pumping components with different outputs are available
Description
For progressive lubrication systems
The P 300 lubrication pump is versatile, compact and economical. Depending on the length of the pipeline, up to 150 lubrication points can be provided. It consists of a housing with an integrated motor, a liquid storage tank with a stirring blade, a pump element with a pressure reducing valve, an oil injection nozzle and electrical connection parts. This powerful pump can drive up to three pump elements and can be equipped with a low-level control (with or without a control board).
Ordercode
| Function principle | electrically operated piston pump |
| Operating temperature V DC | –40 to +70 °C |
| Operating temperature V AC | –25 to +70 °C |
| Operating pressure | 350 bar |
| Lubricant | grease: up to NLGI 2 |
| oil with operating viscosity 40–1500 mm2/s | |
| Outlets | up to 3 |
| Metering quantity depending on pump element | 0,7-4,0 cm3/min / outlet |
| Reservoir capacity | 2; 4; 8; 11 and 15 l |
| Outlet connection | G 1/4 |
| Operating voltage | 12/24 V DC |
| 115, 230 V AC / 50 or 60 Hz | |
| Protection class | IP6K9K |
| Dimensions | |
| min. | 211 × 224 × 287 mm |
| max. | 211 × 250 × 774 |
Specifications
| Function principle | electrically operated piston pump |
| Operating temperature V DC | –40 to +70 °C |
| Operating temperature V AC | –25 to +70 °C |
| Operating pressure | 350 bar |
| Lubricant | grease: up to NLGI 2 |
| oil with operating viscosity 40–1500 mm2/s | |
| Outlets | up to 3 |
| Metering quantity depending on pump element | 0,7-4,0 cm3/min / outlet |
| Reservoir capacity | 2; 4; 8; 11 and 15 l |
| Outlet connection | G 1/4 |
| Operating voltage | 12/24 V DC |
| 115, 230 V AC / 50 or 60 Hz | |
| Protection class | IP6K9K |
| Dimensions | |
| min. | 211 × 224 × 287 mm |
| max. | 211 × 250 × 774 |
WORKSHOP
Please con
tact us for more dimensions!
