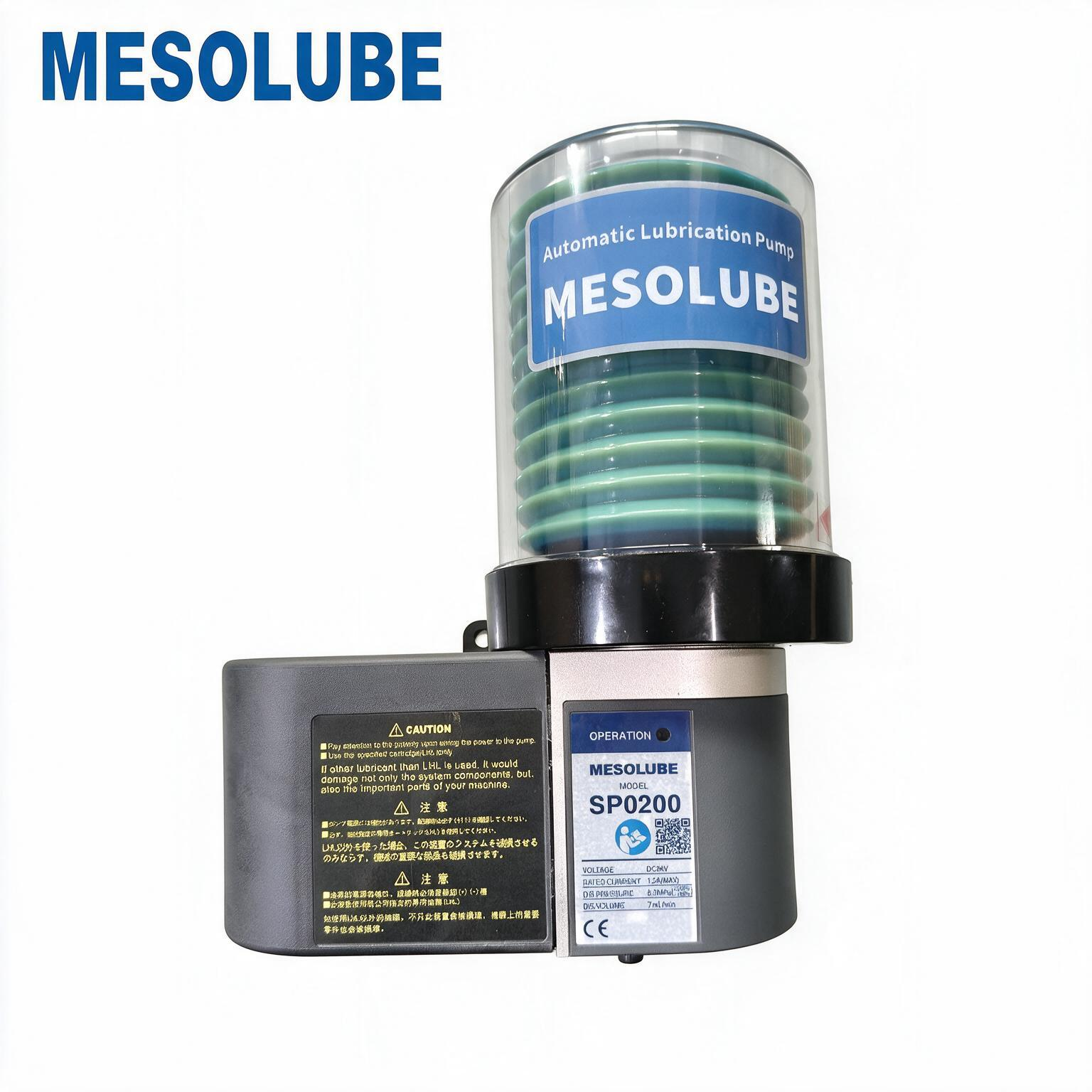

P200-0.4L electric lubricaton Pump for CNC machine

P200 series lubrication pumps have good stability and accuracy, small size and light weight, which are very suitable for precise lubrication of equipment. They can be combined with distributors to form progressive lubrication system.

Description

Advantages
This lubrication pump is used in conjunction with lubrication metering devices. The precise displacement can make each point of the lubricated equipment fully lubricated. The pump is small in size and light in weight. It uses a lubricant cartridge, which is easy to install and widely used.

Refilling
Make sure that the grease is completely consumed before changing the cartridge.
Do not turn on the power without cartridge, otherwise the pump will suck in air or foreign matter and cause its failure.
When replacing the cartridge, do not wipe around the inlet of the pump with a dirty cloth. This will cause the pump to suck in foreign matter and cause its failure.
Only standard LHL oil bag is supported. Using other grease may cause system failure and damage important parts of the equipment.
Do not inject grease into an empty cartridge and reuse it, as this may cause the cartridge to rupture or cause the pump to malfunction due to the entry of air or foreign objects.

Applications
Machine tools, Automation, Printing machines, On/Off-road machines, Construction and forestry machines, Cement industry, Food and beverage, Railroad applications, Steel industry, And more.

Ordercode

Mesolube P200 ordercode

Specifications

Model​ P100 series
Operating pressure Max 8MPa
Operating temperature 0~+50 °C
Metering quantity 15mL/min
Operating voltage 12VDC, 24VDC, 110VAC, 220VAC
Protection class IP54
Number of outlet 1or2 (front and/or bottom)
Lubricants NLGI 000~2 (Working stable lithium soap grease)
Cartridges 0.3L, 0.4L, 0.7L
Reservoirs 0.5L, 0.7L, 1.0L, 1.2L, 1.5L
Mounting position Upright​

Applications

Machine tools, Automation, Printing machines, On/Off-road machines, Construction and forestry machines, Cement industry, Food and beverage, Railroad applications, Steel industry, And more

Layout of P100 series pump in single-line system
