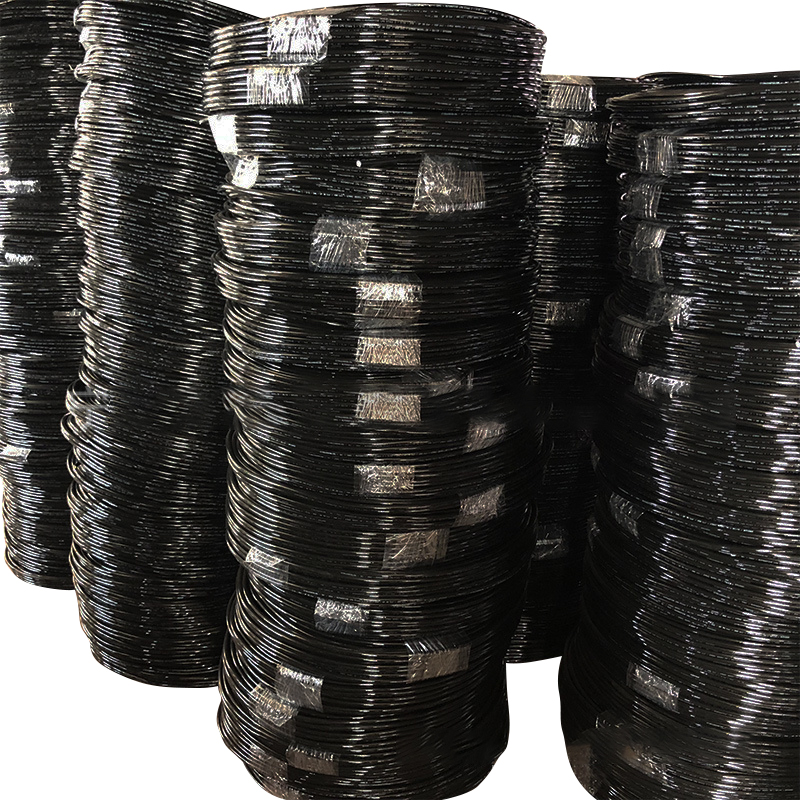

HPH-4×8.6 Resin High Pressure Hydraulic Hose
High pressure bearing capacity, good pulse performance, low fluid resistance, good wear resistance, high cleanliness, low temperature resistance, oil resistance, acid and alkali resistance, aging resistance, ozonation resistance, and UV resistance.
Description
Fiber braided reinforced hose series
product composition:
Inner lining: nylon (PA)/polyurethane (TPU)/TPEE.
Outer cover: Polyurethane (TPU).
Product Features:
High pressure bearing capacity, good pulse performance, low fluid resistance, good wear resistance, high cleanliness, low temperature resistance, oil resistance, acid and alkali resistance, aging resistance, ozonation resistance, and UV resistance.
Applications:
Construction machinery, automobiles, ships, spraying, hydraulic machine tools, power steering systems, lubrication systems, chemical industries and other industries
Operating temperature: -40℃-100℃.
Ordercode
| Model | Inner dia. | Outer dia. | Pressure | Bursting pressure | Bending radius |
| HPH-2.5×5.8 | 2.5mm | 5.8mm | 40MPa | 120MPa | 15mm |
| HPH-3×6 | 3mm | 6mm | 35MPa | 105MPa | 20mm |
| HPH-3.5×8 | 3.5mm | 8mm | 25MPa | 100MPa | 25mm |
| HPH-3.5×8.5 | 3.5mm | 8.5mm | 28MPa | 84MPa | 38mm |
| HPH-4×8.6 | 4mm | 8.6mm | 25MPa | 100MPa | 30mm |
| HPH-6.3×12 | 6.3mm | 12mm | 20MPa | 80MPa | 35mm |
| HPH-6.3×13 | 6.3mm | 13mm | 25MPa | 100MPa | 45mm |
| HPH-8×13.2 | 8mm | 13.2mm | 20MPa | 80MPa | 45mm |
| HPH-10×16 | 10mm | 16mm | 16MPa | 48MPa | 60mm |
| HPH-13×19 | 13mm | 19mm | 14MPa | 42MPa | 80mm |
| HPH-16×16.5 | 16mm | 16.5mm | 13MPa | 39MPa | 160mm |
| HPH-19×34 | 19mm | 34mm | 12MPa | 36MPa | 200mm |
| HPH-25×35 | 25mm | 35mm | 10MPa | 30MPa | 240mm |
Specifications
Fiber braided reinforced hose series
product composition:
Inner lining: nylon (PA)/polyurethane (TPU)/TPEE
Outer cover: Polyurethane (TPU)
Product Features:
High pressure bearing capacity, good pulse performance, low fluid resistance, good wear resistance, high cleanliness, low temperature resistance, oil resistance, acid and alkali resistance, aging resistance, ozonation resistance, and UV resistance.
Applications:
Construction machinery, automobiles, ships, spraying, hydraulic machine tools, power steering systems, lubrication systems, chemical industries and other industries
Operating temperature: -40℃-100℃
Dimensions
| Model | Inner dia. | Outer dia. | Pressure | Bursting pressure | Bending radius |
| HPH-2.5×5.8 | 2.5mm | 5.8mm | 40MPa | 120MPa | 15mm |
| HPH-3×6 | 3mm | 6mm | 35MPa | 105MPa | 20mm |
| HPH-3.5×8 | 3.5mm | 8mm | 25MPa | 100MPa | 25mm |
| HPH-3.5×8.5 | 3.5mm | 8.5mm | 28MPa | 84MPa | 38mm |
| HPH-4×8.6 | 4mm | 8.6mm | 25MPa | 100MPa | 30mm |
| HPH-6.3×12 | 6.3mm | 12mm | 20MPa | 80MPa | 35mm |
| HPH-6.3×13 | 6.3mm | 13mm | 25MPa | 100MPa | 45mm |
| HPH-8×13.2 | 8mm | 13.2mm | 20MPa | 80MPa | 45mm |
| HPH-10×16 | 10mm | 16mm | 16MPa | 48MPa | 60mm |
| HPH-13×19 | 13mm | 19mm | 14MPa | 42MPa | 80mm |
| HPH-16×16.5 | 16mm | 16.5mm | 13MPa | 39MPa | 160mm |
| HPH-19×34 | 19mm | 34mm | 12MPa | 36MPa | 200mm |
| HPH-25×35 | 25mm | 35mm | 10MPa | 30MPa | 240mm |
Applications
Fiber braided reinforced hose series
product composition:
Inner lining: nylon (PA)/polyurethane (TPU)/TPEE
Outer cover: Polyurethane (TPU)
Product Features:
High pressure bearing capacity, good pulse performance, low fluid resistance, good wear resistance, high cleanliness, low temperature resistance, oil resistance, acid and alkali resistance, aging resistance, ozonation resistance, and UV resistance.
Applications:
Construction machinery, automobiles, ships, spraying, hydraulic machine tools, power steering systems, lubrication systems, chemical industries and other industries
Operating temperature: -40℃-100℃
