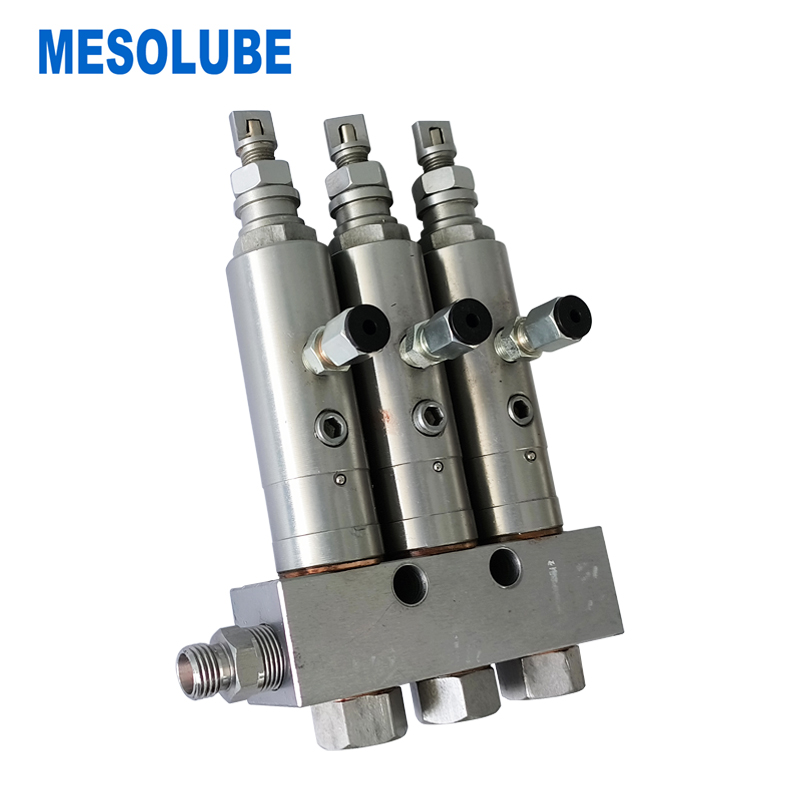

D400 metering devices -single -line lubrication systems
For single-line central lubrication system.
For dispensing fuid or semi-fuid lubricants
Output is externally adjustable.
Indicator stem permits visual check of injector operation.
Description
D400 series metering device is suitable for all single -line centralized lubrication system.
Characteristics
Function principleprelubrication metering device
Outlets 1-10
Metering quantity, adjustable0,016-1,31 cm³0.001-0.08 in³
Lubricantmineral and synthetic oilOperating temperature-26 to +93 °C-15 to +200 °F
Heat resistantmax. +176 °C+350 °FOperating pressuremin. 52 bar
max. 70 barmin. 750 psi
max. 1000 psiRelief pressure10 bar150 psi
Materialcarbon steel,
Connection main line3/8 NPTF (F)Connection outlet1/8 NPTF (F)Dimensionsmin. 63 × 179,4 × 52,4 mm
max. 171 × 179,4 × 52,4 mmmin. 2.5 × 7.1 × 2.1 in
max. 6.75 × 7.1 × 2.1 in
Mounting positionany
Ordercode
Function principleprelubrication metering device
Outlets 1-10
Metering quantity, adjustable0,016-1,31 cm³0.001-0.08 in³
Lubricantmineral and synthetic oilOperating temperature-26 to +93 °C-15 to +200 °F
Heat resistantmax. +176 °C+350 °FOperating pressuremin. 52 bar
max. 70 barmin. 750 psi
max. 1000 psiRelief pressure10 bar150 psi
